ケータハム セブン160 / 170 LSD プラネタリーギアLSD EVO 扱いやすいトルクバイアス コントロール性向上
¥219,800($1,411.06)
International shipping available
この商品は3点までのご注文とさせていただきます。
ケータハム Seven 160 / 170 専用
Planetary Gear LSD — 5-Gear Evo
“静かに速い”を、さらに進化させた5ギアモデル。
セブンの持ち味である、軽快さ・ダイレクト感・繊細な荷重変化。
そのキャラクターをできる限り崩さず、
「必要なときだけ、トラクションを引き出す」
ことを狙って開発したのが、Planetary Gear LSD 5-Gear Evoです。
従来の3ギア構造から5ギア構造へ進化。
さらに軽いイニシャルトルクを与える機構を組み合わせることで、プラネタリーギア式の自然なトルクバイアス特性を活かしながら、低荷重時のレスポンスも補いました。
---
■ なぜ5-Gear Evoなのか

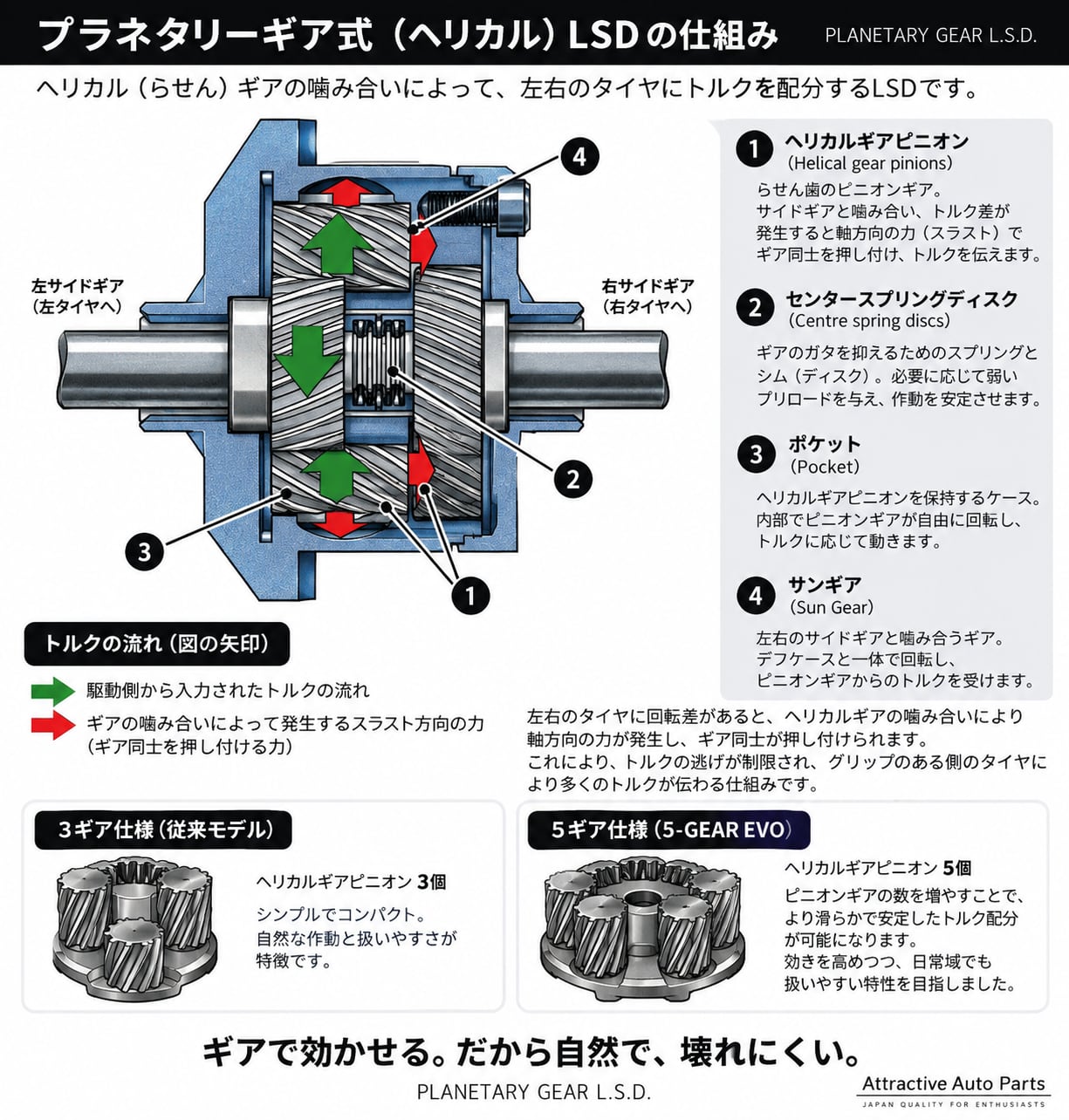

◉ 5ギア化による、より滑らかなトルク伝達

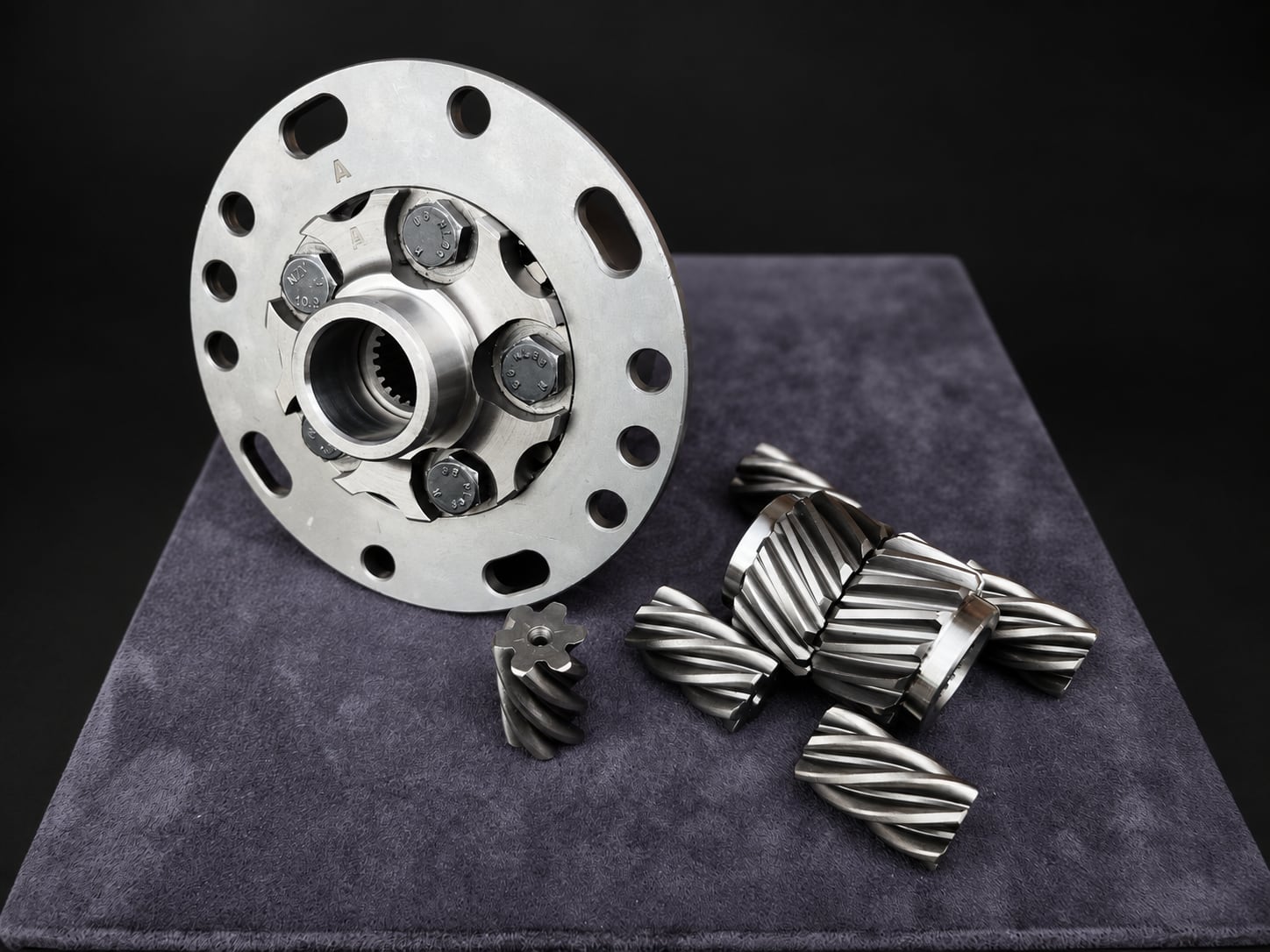

プラネタリーギアを5個配置。
荷重をより多くのギアへ分散させながら、左右輪の回転差に応じて連続的にトルクを伝達します。
クラッチプレート式LSDのような明確なON/OFF感ではなく、
アクセル操作に対して自然にトラクションが立ち上がる。
軽量なSevenだからこそ、この滑らかさが大きな武器になります。
◉ 軽イニシャル機構を追加
Planetary Gear LSDの弱点になりやすい、片輪が極端に低荷重となった状態。
5-Gear Evoでは軽いプリロードを与えることで、低荷重状態からでもLSDが仕事を始めやすいセッティングとしています。
ただし、クラッチ式LSDのように強いイニシャルトルクで常時左右輪を拘束する思想ではありません。
必要なのは「強いロック」ではなく、作動を始めるためのわずかなきっかけ。
これが5-Gear Evoの考え方です。
---
■ Sevenのハンドリングを邪魔しない
Sevenに強すぎるLSDを入れると、アクセルONでリアから強く押される感覚や、旋回中のアンダーステアにつながる場合があります。
5-Gear Evoが狙ったのは、その逆です。
LSDの存在を主張させず、トラクションだけを増やす。
コーナー進入ではSeven本来の軽快さを残し、クリップからアクセルを開ければ左右後輪へ自然にトルクを配分。
ドライバーが作った姿勢をLSDが邪魔しにくい特性を狙っています。
---
■ 街乗りからワインディング、サーキットまで
雨天、荒れた舗装、路面の継ぎ目、左右でμの違う路面。
軽量なSevenでは、こうした小さな路面変化でも後輪荷重が大きく変化します。
Planetary Gear LSDは左右輪の回転差と負荷に応じて連続的に働くため、
日常走行では自然に。
必要な場面ではしっかりトラクションを。
街乗りの快適性を大きく犠牲にせず、スポーツ走行での駆動力を引き出します。
---
■ クラッチ式とは違う、シンプルな維持管理
クラッチプレート式LSDのような摩擦板を主体としたロック機構ではないため、定期的なプレート交換やイニシャルトルク調整を前提としません。
使用オイルはGL-5 140番ギアオイルを推奨。
クラッチ式LSD特有のチャタリングも発生しにくく、普段使いでも扱いやすいLSDです。
スポーツ走行だけではなく、
「普通にSevenに乗る時間」も大切にした設計です。
---
■ こんなSevenオーナーへ
170R純正LSD以外の選択肢を探している。
クラッチ式LSDほど強いロック感は必要ない。
Seven本来の旋回性をできるだけ残したい。
街乗り・ワインディング・サーキットを1台で楽しみたい。
雨天や低μ路でのトラクションを改善したい。
そして何より、
LSDを入れるためにSevenらしさを失いたくない。
そんなオーナーのためのLSDです。
---
“効きを誇張しない。けれど、アクセルを踏めば違いが分かる。”
強くロックすることが、高性能とは限らない。
5-Gear Evoが目指したのは、
曲げる自由を残しながら、前へ進む力だけを増やすこと。
Planetary Gear LSD
5-Gear Evo for Caterham Seven 160 / 170
走りに、“自由”を。
---
English
Caterham Seven 160 / 170
Planetary Gear LSD — 5-Gear Evo
Quiet. Progressive. Fast.
The Caterham Seven is all about lightness, direct feedback and precise response to even the smallest change in weight transfer.
The 5-Gear Evo was developed around one simple principle:
Improve traction without taking away the character of the Seven.
Evolved from our original 3-gear design, the new 5-gear planetary configuration distributes load across five planetary gears and provides smoother, more progressive torque transfer.
A light preload system has also been incorporated to improve response when one driven wheel becomes lightly loaded.
The result is an LSD designed to work with the Seven — not against it.
---
■ Why 5-Gear Evo?
◉ Five planetary gears for smoother torque transfer
The 5-Gear Evo uses five planetary gears to distribute load and continuously transfer torque in response to differences in wheel speed and available traction.
Unlike a traditional clutch-type LSD, there is no aggressive transition between “open” and “locked”.
Instead, the differential progressively responds as torque is applied.
Traction builds naturally with the throttle.
In a car as light and responsive as the Caterham Seven, that progressive behaviour makes a real difference.
◉ Light preload for low-load situations
Torque-biasing differentials can become less effective when one driven wheel is extremely lightly loaded.
The 5-Gear Evo addresses this with a carefully controlled light preload.
Its purpose is not to permanently lock the rear wheels together.
It simply provides enough internal resistance to help the torque-biasing mechanism begin working when wheel load becomes very low.
It doesn't need aggressive lock-up.
It only needs enough preload to get the differential working.
That is the philosophy behind the 5-Gear Evo.
---
■ Designed to preserve the Seven's handling
An overly aggressive LSD can change the balance of a lightweight rear-wheel-drive car.
Under power, excessive locking can increase the feeling of the rear axle pushing the car forward and may promote power-on understeer.
The 5-Gear Evo was developed with the opposite objective:
Keep the steering response. Keep the balance. Add traction.
On corner entry, the Seven remains light and responsive.
As the throttle is applied from the apex, torque is progressively distributed across the rear axle.
The LSD is designed to support the driver's inputs rather than dominate them.
---
■ Road, B-road and circuit
Wet roads, uneven surfaces, bumps, road joints and changes in grip can produce surprisingly large changes in rear tyre loading in such a lightweight car.
The Planetary Gear LSD responds progressively to differences in wheel speed and available traction.
Natural and unobtrusive in normal driving.
Effective when traction is needed.
That makes the 5-Gear Evo suitable for a Seven that isn't simply a track car.
Enjoy the road.
Enjoy the B-roads.
Enjoy the circuit.
With the same differential.
---
■ Simple maintenance
Unlike a conventional clutch-plate LSD, the Planetary Gear LSD does not rely on a stack of friction plates as its primary locking mechanism.
This means routine clutch-pack replacement and regular breakaway-torque adjustment are not part of normal maintenance.
We recommend a GL-5 SAE 140 gear oil.
The design also avoids the characteristic low-speed chatter commonly associated with aggressive clutch-type differentials.
The result is an LSD that can be enjoyed not only during hard driving, but also every time you simply take the Seven out for a drive.
---
■ Who is the 5-Gear Evo for?
For Seven owners looking for an alternative to the factory LSD.
For drivers who don't want the aggressive behaviour of a heavily preloaded clutch-type differential.
For owners who want to preserve the Seven's natural agility.
For cars used on the road, on B-roads and on track.
For drivers looking for improved traction in wet or low-grip conditions.
And above all:
For drivers who don't want to sacrifice the character of their Seven just to gain an LSD.
---
“It doesn't shout about locking the wheels. You simply feel the extra traction.”
More lock does not automatically mean more performance.
The objective of the 5-Gear Evo is simple:
Preserve the freedom to turn — while giving you more drive out of the corner.
Planetary Gear LSD
5-Gear Evo for Caterham Seven 160 / 170
Freedom to drive.
-
